  1. Remove the Freehub lockring
    • Remove the Freehub lockring

  2. Loosen the non-driveside endcap by turning counter clockwise using cone wrenches
    • Loosen the non-driveside endcap by turning counter clockwise using cone wrenches

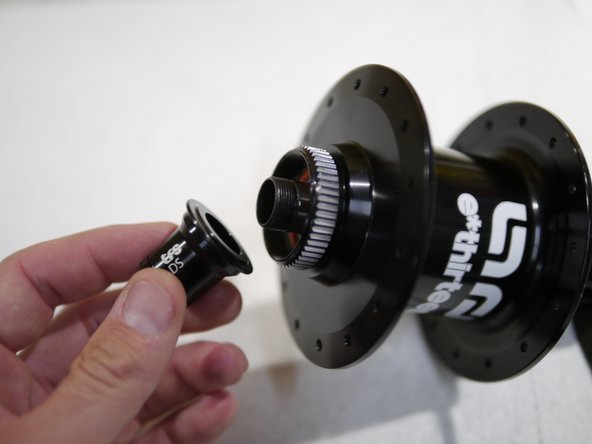

    • Remove the non-drive endcap

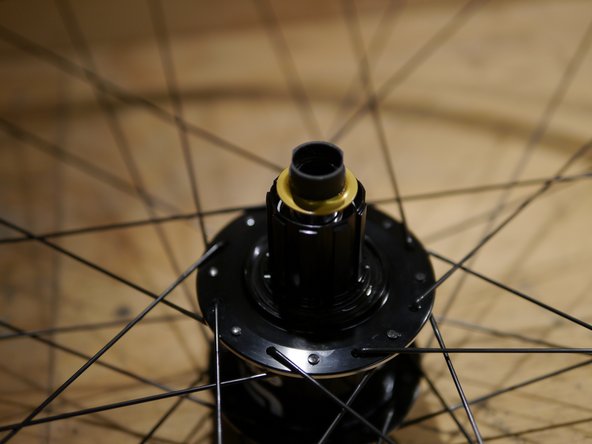

    • Slide the steel axle out of the drive side of the hub

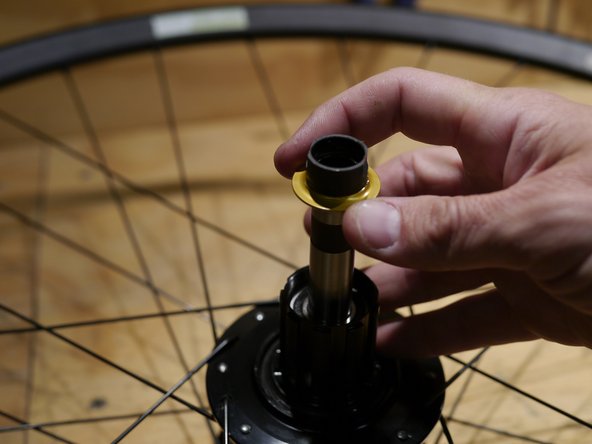

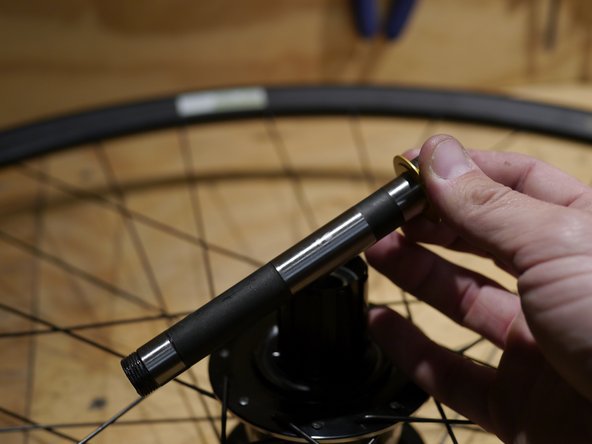

    • Be careful not to dislodge the freehub body

    • Remove the freehub spacer.

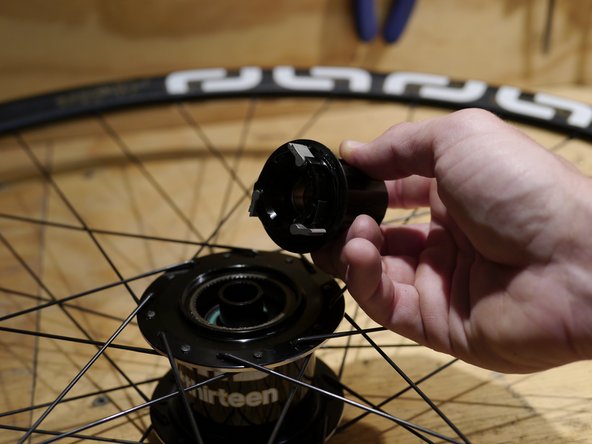

      • Note: this spacer is not used with the XX1 freehub body

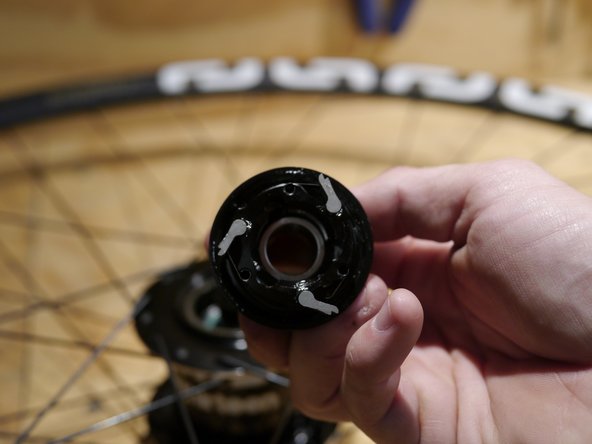

      • Note: This spacer may be black or gold in color

    • Remove the freehub body

      • Be careful not to lose any of the pawls or the pawl springs

    • Remove the freehub shim

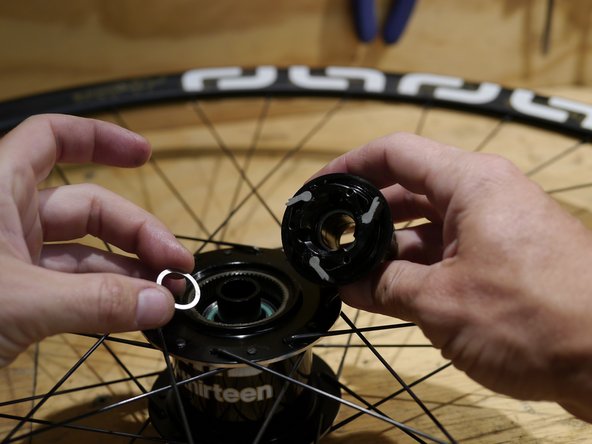

      • This is a thin washer. Be careful as sometimes this can stick to the inside of the freehub body or the bearing spacer

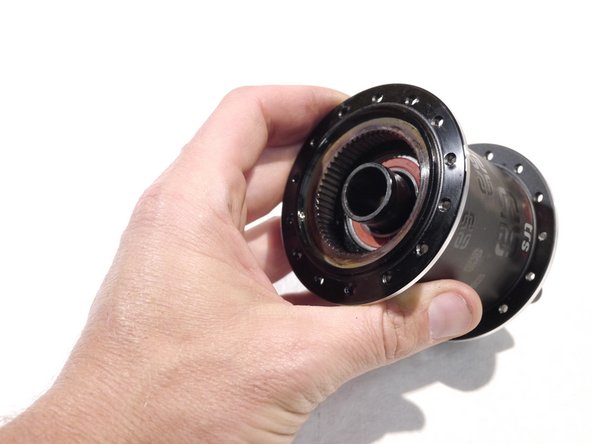

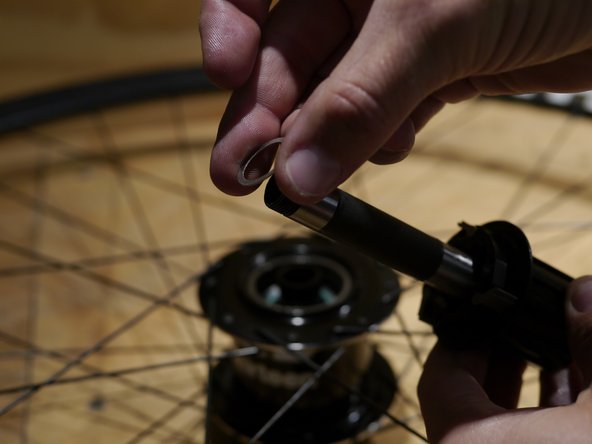

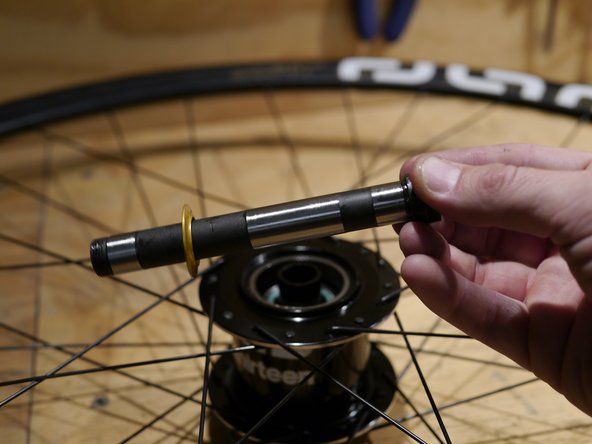

    • Next, slide the freehub spacer onto the axle.

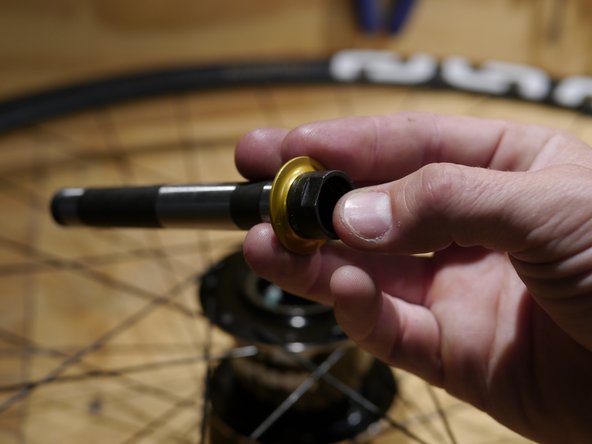

      • Install the spacer so the flat side is against the bearing and the tapered side is facing out from the hub

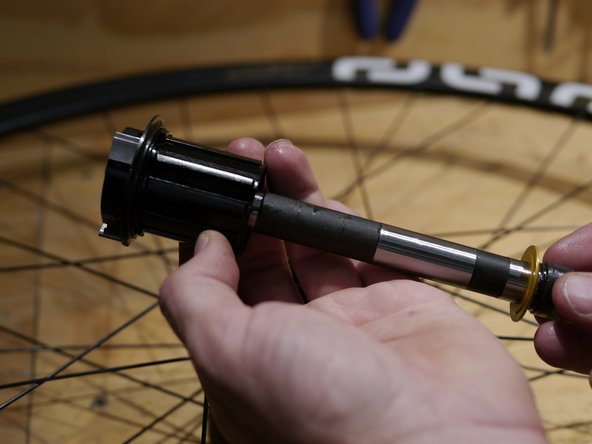

      • Note: This spacer is not used with the XX1 compatible XD driver

    • Install the freehub body into the axle

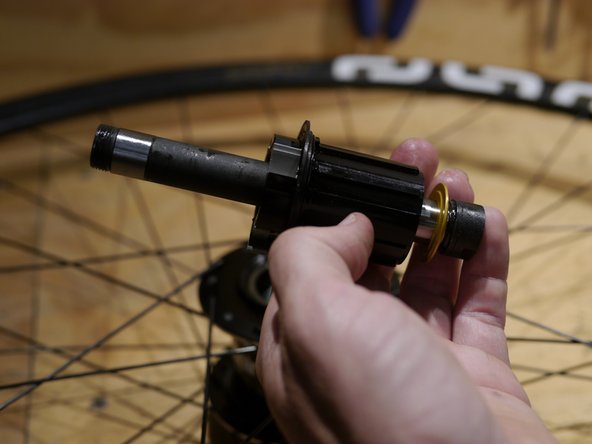

    • Slide the freehub shim onto the axle after the freehub body

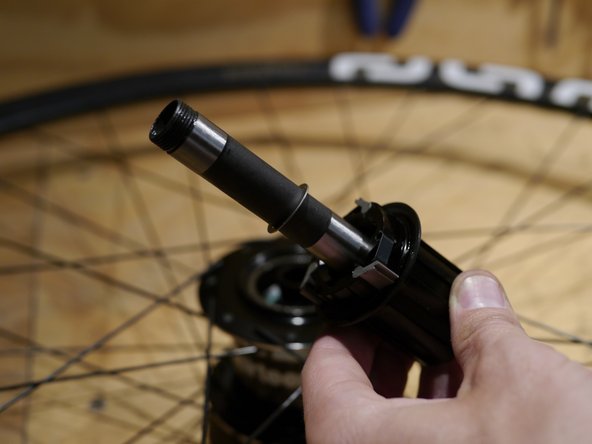

    • You should now have the axle, freehub spacer (not used with the XD driver), freehub body and freehub shim installed on the axle.

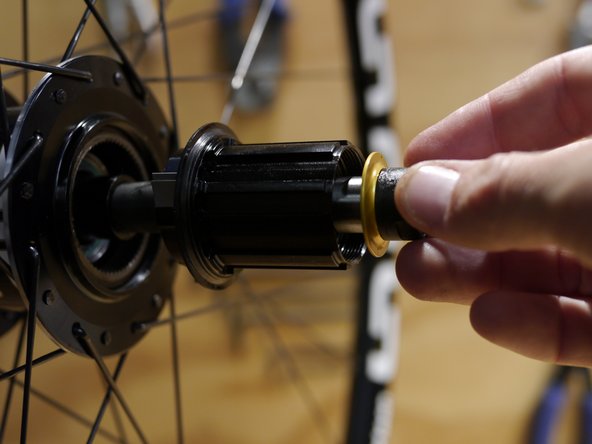

    • Slide the axle assembly into the freehub spacer and hub shell

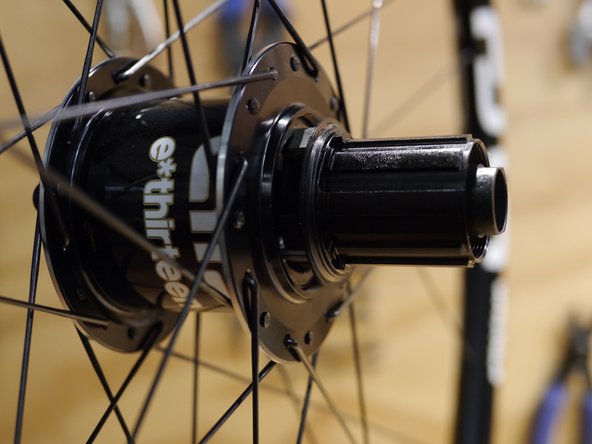

    • Turn the freehub body counter-clockwise to compress the pawls into the ratchet ring in the hub shell

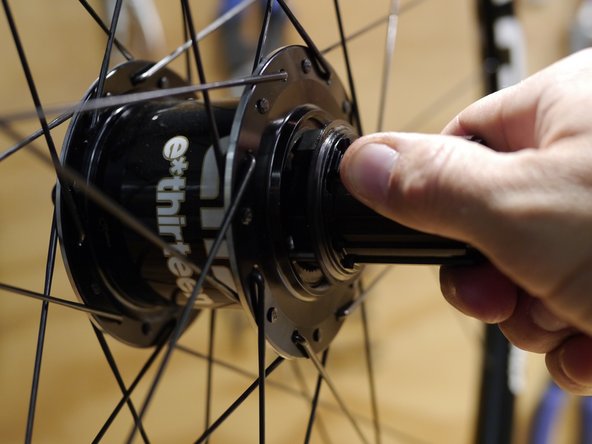

    • For information on lube and service for the freehub body please see our freehub service instructions

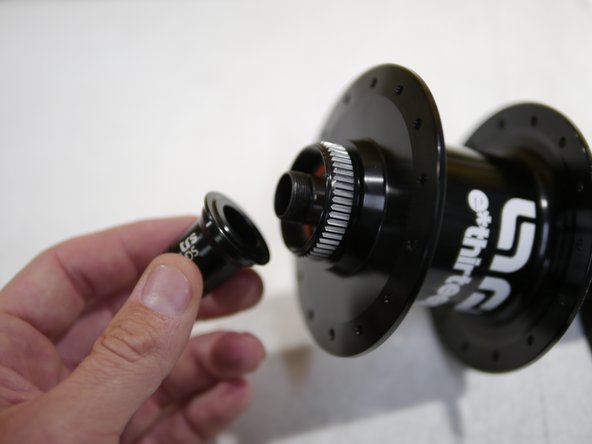

    • flip the hub over and install the non-drive endcap

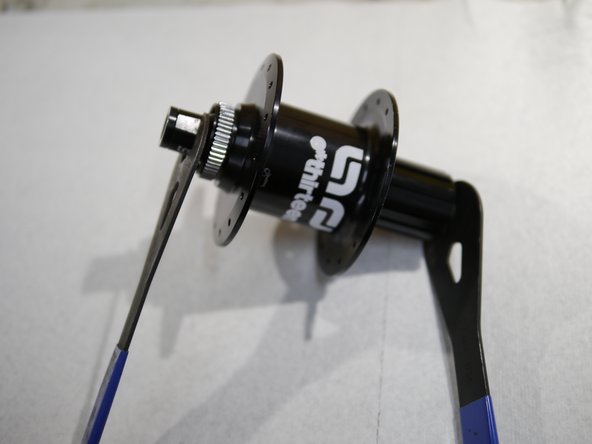

    • Tighten the endcap using cone wrenches by turning clockwise

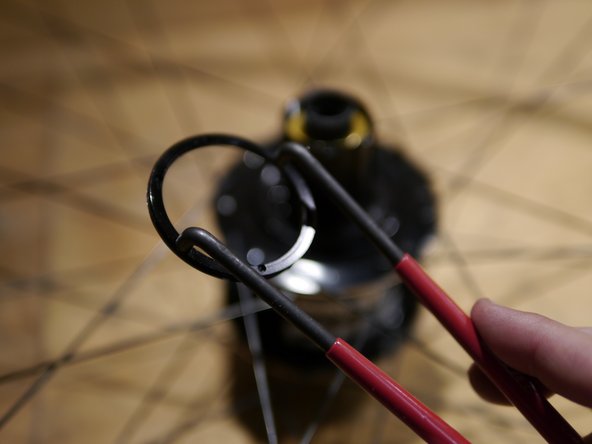

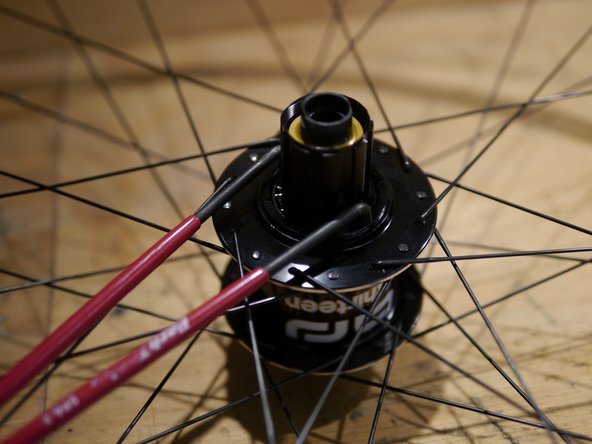

    • Put one drop of freehub oil on the rubber dust seal and install the freehub dust seal lockring
