How to install and remove rear axle endcap plugs

Written By: The Hive - Jeremy (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Very easy

Steps

4

Time Required

00:01:00

Sections

1

Flags

0

  1. All gen 2 rear hubs use endcap plugs to support various axle standards

    • All gen 2 rear hubs use endcap plugs to support various axle standards

    • Endcap plugs press-in and can easily be swapped without taking the hub apart

  2. Supported standards include:

    • Supported standards include:

    • TRS hubs - Boost 148 X 12mm thru axle / QR 141

    • TRS hubs - QR 135 / 135 X 12mm thru axle / 142 X 12mm thru axle

    • LG1 hubs - QR 150 / 150x12 Thru Axle / 157 X 12 Thru Axle

  3. Plugs are held in place with an O-ring.

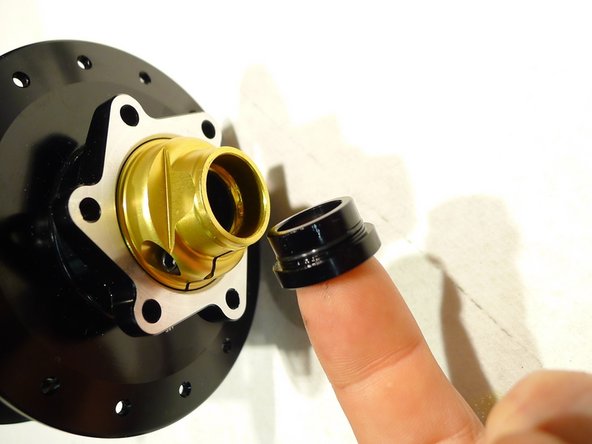

    • Plugs are held in place with an O-ring.

    • Be sure to grease the plugs before install

    • 135x12 and 150x12 plugs will sit flush with the end of the hub axle/endcap

  4. QR plugs can be removed by lightly taping them out using an M5 hex wrench 135x12 plugs can be removed by pulling them from the lip on the backside using a pick 142x12 plugs can be removed by pulling on them using a 17mm (drive side) or 19mm (non-drive side) cone wrench

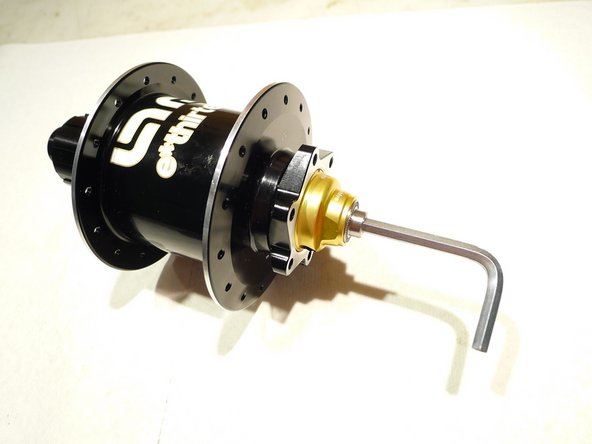

    • QR plugs can be removed by lightly taping them out using an M5 hex wrench

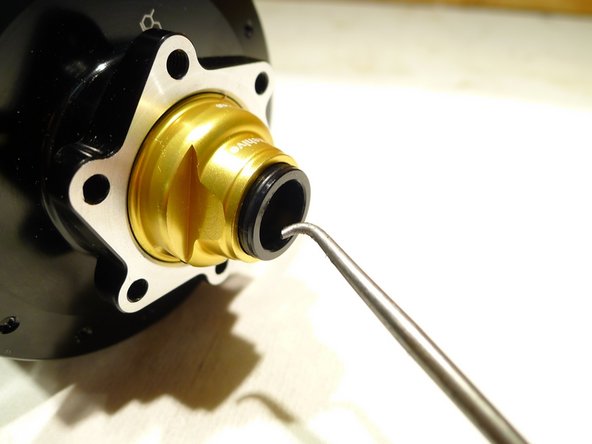

    • 135x12 plugs can be removed by pulling them from the lip on the backside using a pick

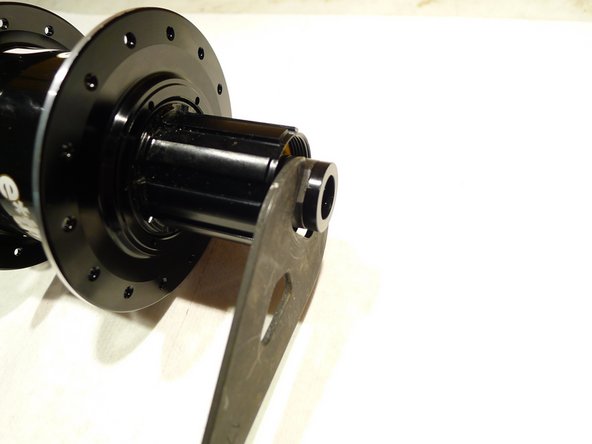

    • 142x12 plugs can be removed by pulling on them using a 17mm (drive side) or 19mm (non-drive side) cone wrench

    • Do not try to remove the plugs by pulling on them with pliers
