  1. Start by removing all the pedal pins, these are accessed from the back of the pin
    • Start by removing all the pedal pins, these are accessed from the back of the pin

  2. Once the pins are removed simply pry the wearplates off the pedal body Once the pins are removed simply pry the wearplates off the pedal body
    • Once the pins are removed simply pry the wearplates off the pedal body

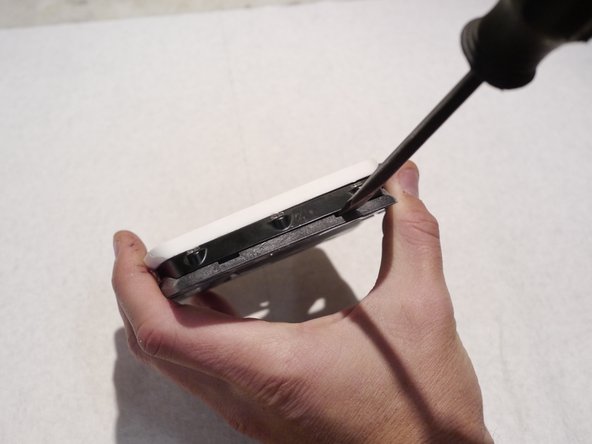

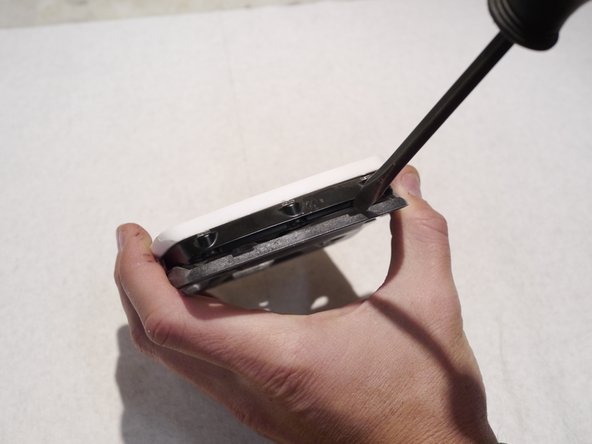

  3. Newer pedal plastics include slots for a flat blade screw driver if you are having trouble prying the plates off Newer pedal plastics include slots for a flat blade screw driver if you are having trouble prying the plates off
    • Newer pedal plastics include slots for a flat blade screw driver if you are having trouble prying the plates off

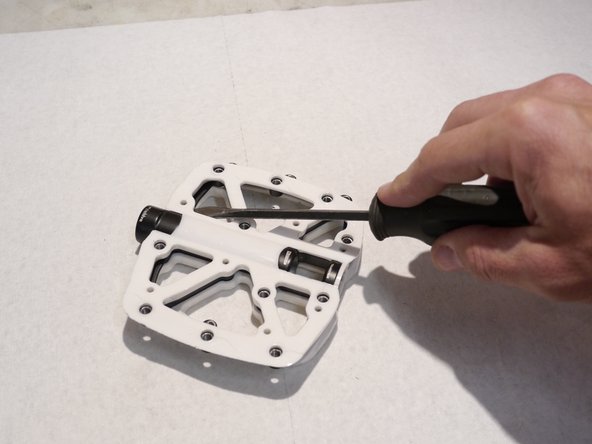

  4. For older pedals it may be helpful to loosen the wearplate before removal by prying a corner up
    • For older pedals it may be helpful to loosen the wearplate before removal by prying a corner up

  5. Clean the pedal bodies before installing new wearplates Wearplates are side specific. If you can't get a wearplate to line up, it may be for the other pedal Push firmly on the wearplate to engage it on the pedal body

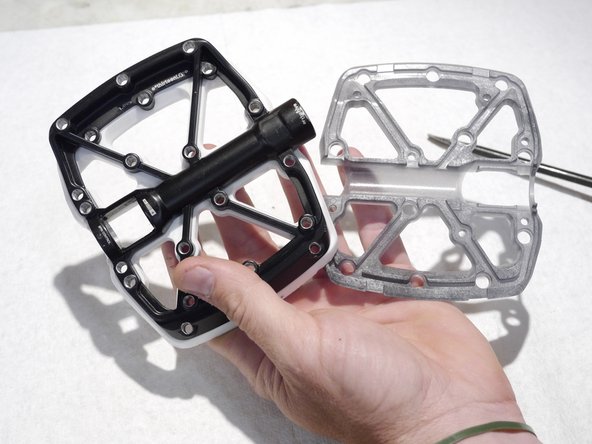

    • Clean the pedal bodies before installing new wearplates

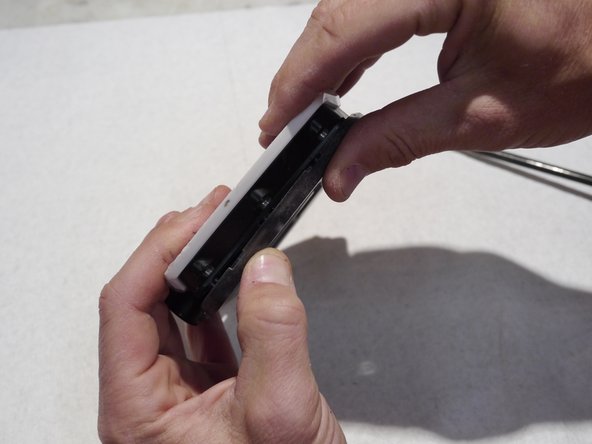

    • Wearplates are side specific. If you can't get a wearplate to line up, it may be for the other pedal

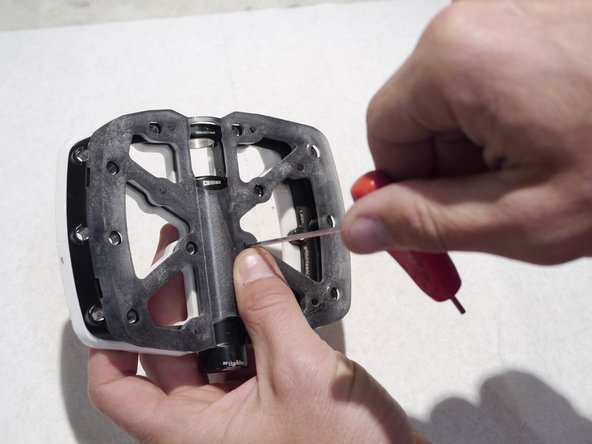

    • Push firmly on the wearplate to engage it on the pedal body

    • Re-install the pedal pins

Conclusion

Thanks for reading, now get out there and ride!
