Remove the Freehub lockring

2016+ hubs and freehubs use a one piece seal and no lockring, so skip this step if you don't see the lockring

Loosen the 3mm hex endcap screw, by turning counterclockwise

Loosen the non-drive side endcap by turning it clockwise.

Remove the non-drive endcap

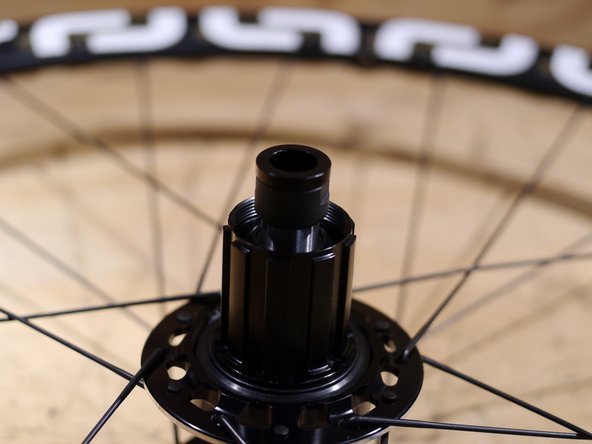

Slide the steel axle out of the drive side of the hub

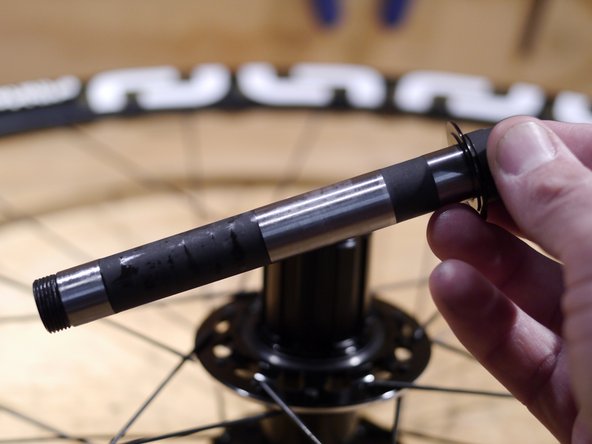

Be careful not to dislodge the freehub body

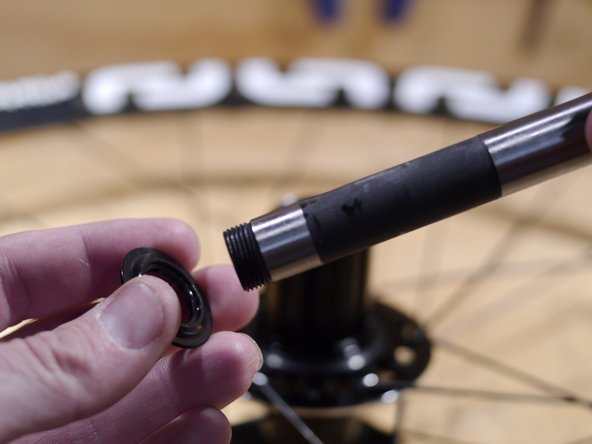

Remove the freehub spacer.

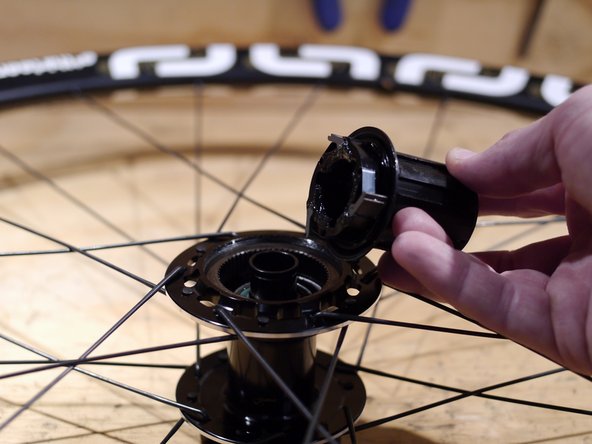

Note: this spacer is not used with the XX1 freehub body

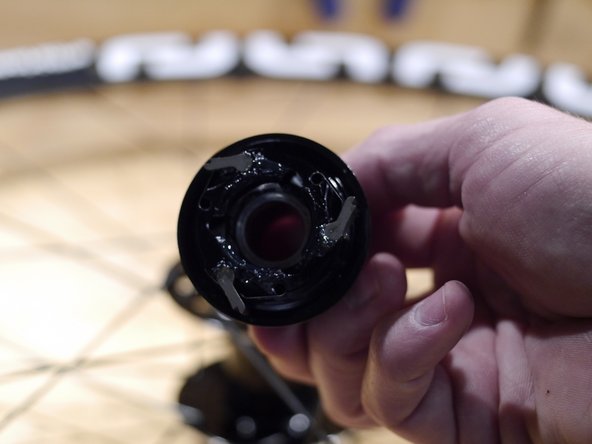

Remove the freehub body

Be careful not to lose any of the pawls or the pawl springs

Remove the freehub shim

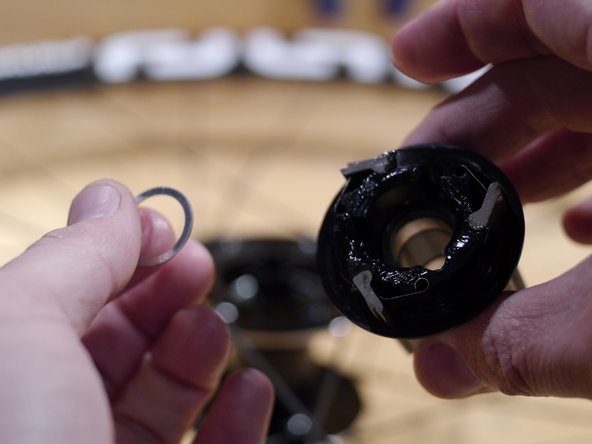

This is a thin washer. Be careful as sometimes this can stick to the inside of the freehub body or the bearing spacer

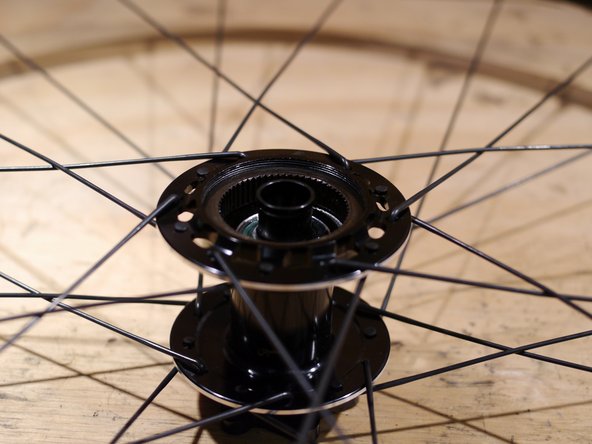

Remove the bearing spacer

At this point the hub is most of the way apart, you can service bearings, replace worn parts or just clean things up

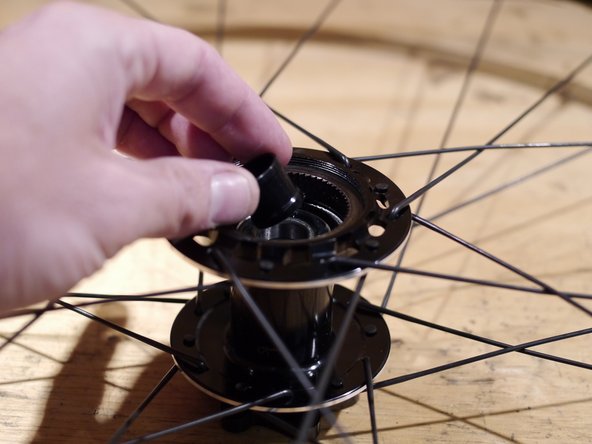

Now lets put the hub back together

Start by lightly greasing and setting the bearing spacer onto the driveside hub bearing

Next, slide the freehub spacer onto the axle.

Install the spacer so the flat side is against the bearing and the tapered side is facing out from the hub

Note: This spacer is not used with the XX1 compatible XD driver

Install the freehub body into the axle

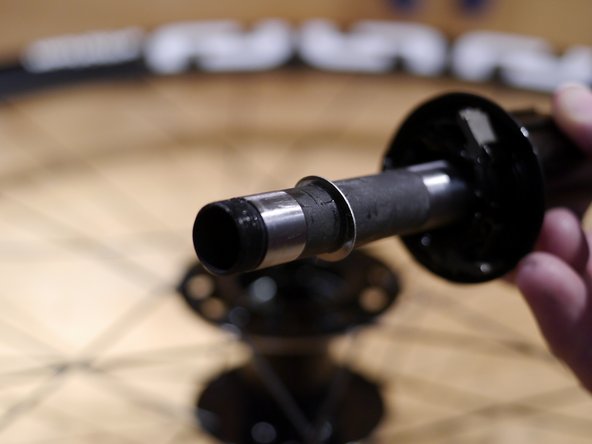

Slide the freehub shim onto the axle after the freehub body

You should now have the axle, freehub spacer (not used with the XD driver), freehub body and freehub shim installed on the axle.

Slide the axle assembly into the freehub spacer and hub shell

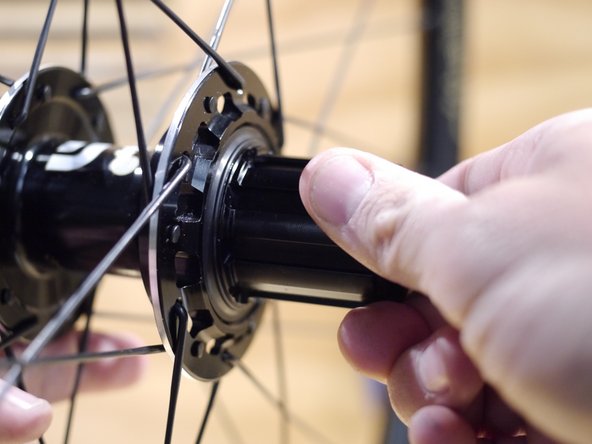

Turn the freehub body counter-clockwise to compress the pawls into the ratchet ring in the hub shell

For information on lube and service for the freehub body please see our freehub service instructions

flip the hub over and install the non-drive endcap

Remember, this endcap uses a reverse thread so turn it counter-clockwise to tighten

Turn the endcap by hand to adjust bearing preload until the hub no longer has bearing play

Cone wrenches can be used, but are rarely needed

Tighten the non-drive endcap using a 3mm hex wrench to 3nm

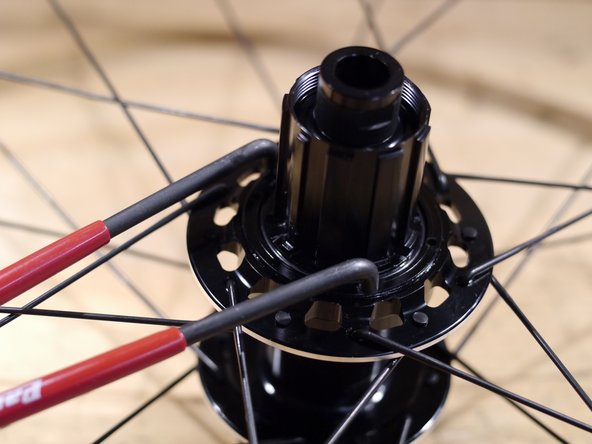

Put one drop of freehub oil on the rubber dust seal and install the freehub dust seal lockring
