  1. Re-greasing BB bearings is vital to the life of your BB, especially when riding in wet environments or after hosing your bike off
    • Re-greasing BB bearings is vital to the life of your BB, especially when riding in wet environments or after hosing your bike off

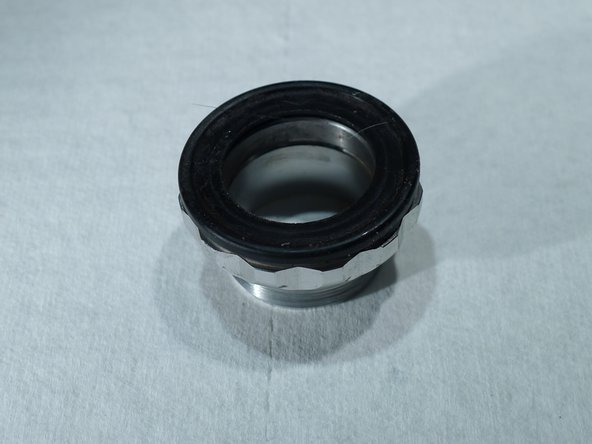

  2. Start by removing the cranks from the BB The BB does not need to be removed from the bike to do this service, but it is a good idea to remove and re-grease the BB threads at the same time
    • Start by removing the cranks from the BB

    • The BB does not need to be removed from the bike to do this service, but it is a good idea to remove and re-grease the BB threads at the same time

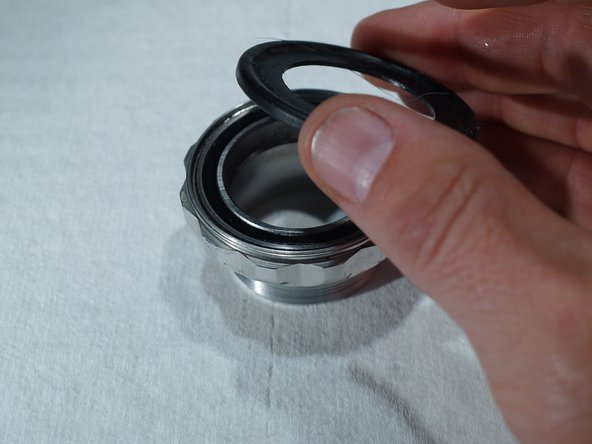

    • Remove the outer dust seal

    • Dust seals on older BBs should come off easily

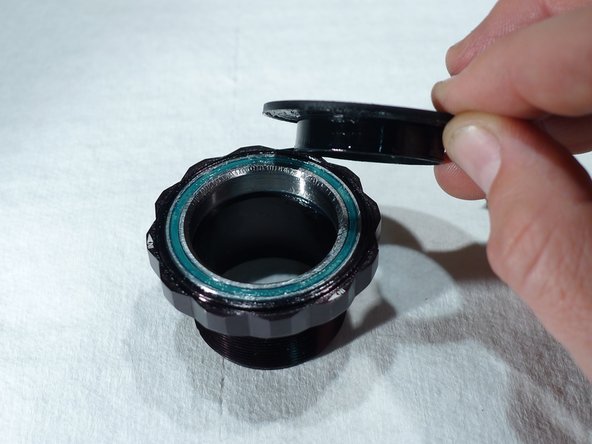

  3. New BB dust seals have an inner sleeve that helps protect the bearing These can be easily identified as the spindle sits on a portion of the plastic dust shield rather than directly on the metal inner bearing race To remove the dust seal, gently slide a small flat blade screwdriver under the dust seal
    • New BB dust seals have an inner sleeve that helps protect the bearing

    • These can be easily identified as the spindle sits on a portion of the plastic dust shield rather than directly on the metal inner bearing race

    • To remove the dust seal, gently slide a small flat blade screwdriver under the dust seal

    • Slowly work your way around the BB lightly prying up the dust seal

    • Repeat this until the dust seal is free from the bearing

    • Be careful not to pry to hard in one place as this can crack the seal

  4. The cartridge bearing should now be exposed Remove the seal on the cartridge bearing by sliding a thin sharp tool such as a razor knife under the outer diameter of the bearing seal and lightly prying Be careful not to bend the seal while removing it
    • The cartridge bearing should now be exposed

    • Remove the seal on the cartridge bearing by sliding a thin sharp tool such as a razor knife under the outer diameter of the bearing seal and lightly prying

    • Be careful not to bend the seal while removing it

  5. With the cartridge bearing seal removed, clean the bearing throughly With the cartridge bearing seal removed, clean the bearing throughly
    • With the cartridge bearing seal removed, clean the bearing throughly

  6. Repack the bearing with a high quality grease Be sure to pack grease into the bearing, then turn the bearing to help the grease penetrate into the race and balls
    • Repack the bearing with a high quality grease

    • Be sure to pack grease into the bearing, then turn the bearing to help the grease penetrate into the race and balls

    • Replace the cartridge bearing seal by pressing it back into place by hand

    • Before replacing the outer dust seal, if you are riding in wet climates or hosing your bike off it is a good idea to put a bead of grease on top of the cartridge bearing seal

    • This will act as a water barrier under the dust seal and help protect the BB bearings
