  1. PF30 frames should have a inner diameter of 46mm
    • PF30 frames should have a inner diameter of 46mm

    • The PF30 BB is the same for XCX, TRS and LG1 cranks as well as all legacy models

    • PF30 BBs work with 68mm, 73mm or 83mm wide BB shells

    • Start by measuring your BB shell and choosing the correct number of spacers to use between the BB and the frame using the chart

    Add Comment

  2. Grease the center threads of the BB
    • Grease the center threads of the BB

    • Refer to and follow your frame manufacturers specifications regarding the use of grease on the inside of the BB shell.

      • In general we recommend grease, but some carbon frames may not be compatible with it.

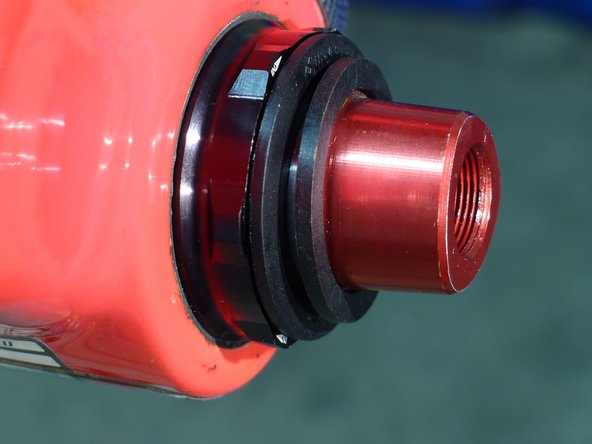

    • Thread the BB together making sure that the cups and any needed spacers are centered before tightening

    Add Comment

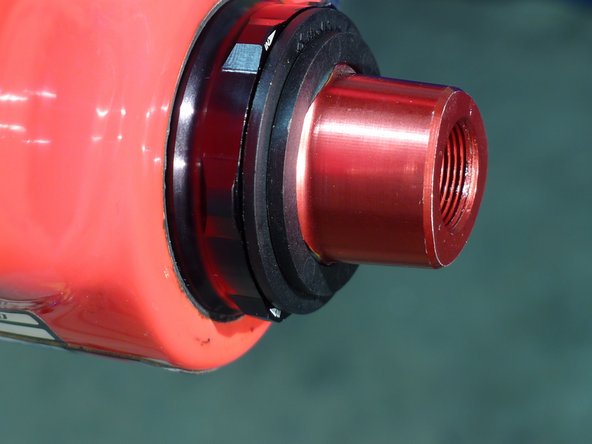

    • Using an e*thirteen BB tool, a 10mm hex bit and a torque wrench, tighten the BB to 34nm

    Add Comment

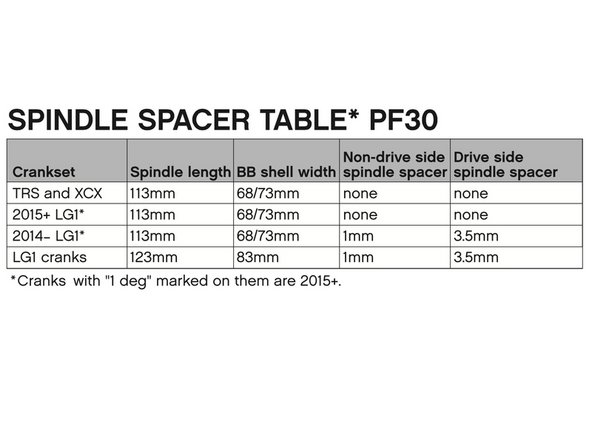

    • Using the chart, determine the number of spindle spacers needed for your BB shell width and spindle

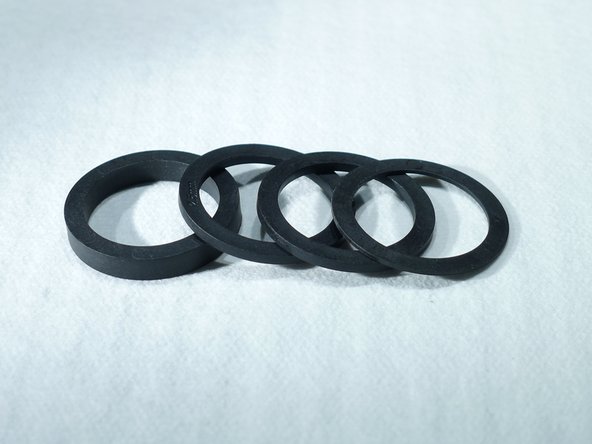

    • DH cranks such as the LG1 use a bit longer spindle than XC cranks so be sure to use the proper number of spacers

    Add Comment

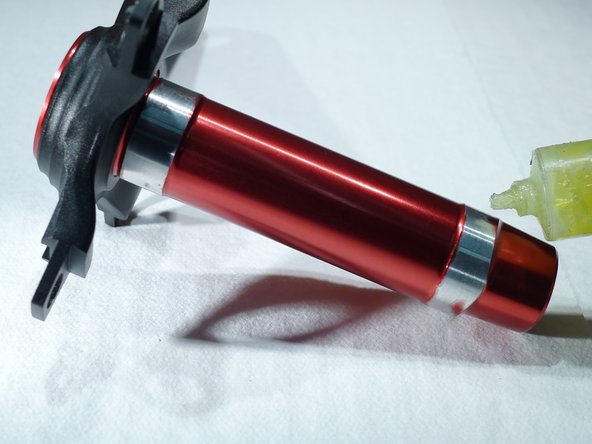

    • Lightly grease the crank spindle and install the appropriate spacers on the drive and non-drive side of the spindle

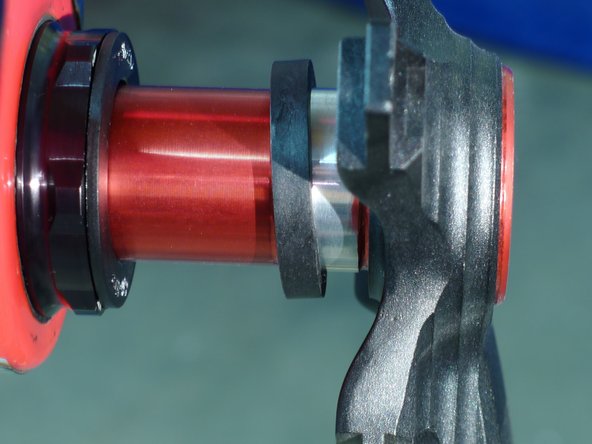

      • In this case we are installing LG1 cranks so spindle spacers are needed

    Add Comment

  3. Add Comment

Conclusion

Thanks for reading, now get out there and ride!
