Tools

Parts

No parts required.

TRS D-type guides will accommodate chainlines from 48.5 to 51.5mm For more information on determining your chainline, please see Chainline explained
  • TRS D-type guides will accommodate chainlines from 48.5 to 51.5mm

  • For more information on determining your chainline, please see Chainline explained

  • For this retention device we adjust chainline using spacers between the chainguide backplate and the frame

Add Comment

Start by opening upper slider Open the metal clip on the upper slider Flip the clip open
  • Start by opening upper slider

    • Open the metal clip on the upper slider

    • Flip the clip open

    • Release the latch and rotate the upper slider open

Add Comment

Install the guide on the frame with the  black T-spacer and the shorter of the two bolts using a T25 Torx wrench
  • Install the guide on the frame with the black T-spacer and the shorter of the two bolts using a T25 Torx wrench

  • This will put the chainguide at a 48.5mm chainline

Add Comment

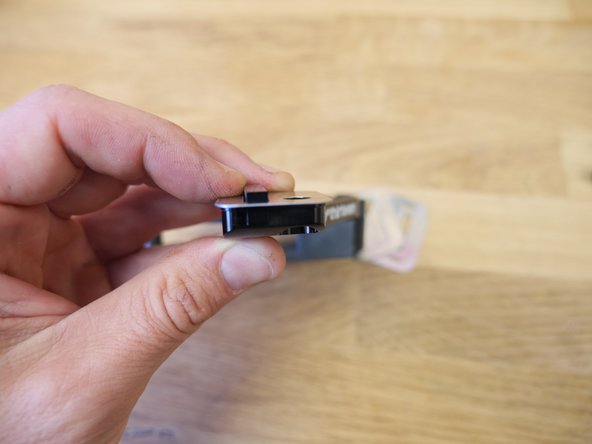

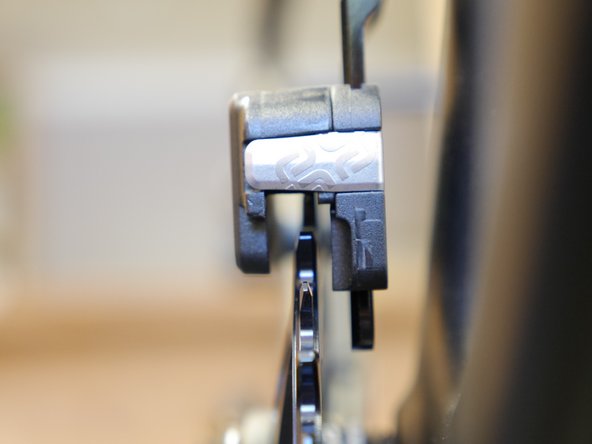

Close the upper slider and sight down the front of the guide and chainring Add the silver spacers behind the T-spacer to center the slider over the chainring as needed
  • Close the upper slider and sight down the front of the guide and chainring

  • Add the silver spacers behind the T-spacer to center the slider over the chainring as needed

Add Comment

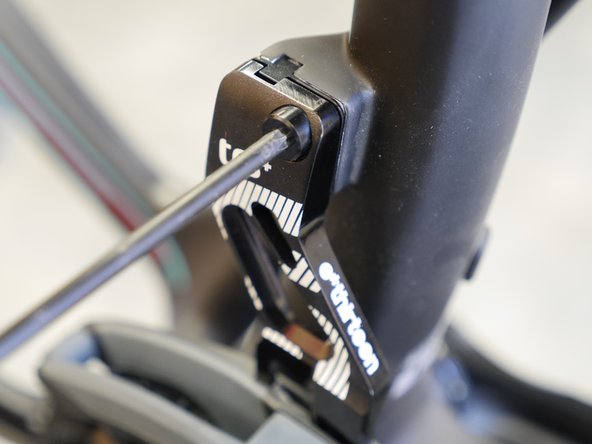

Tighten the fixing bolt to 6N*m
  • Tighten the fixing bolt to 6N*m

Add Comment

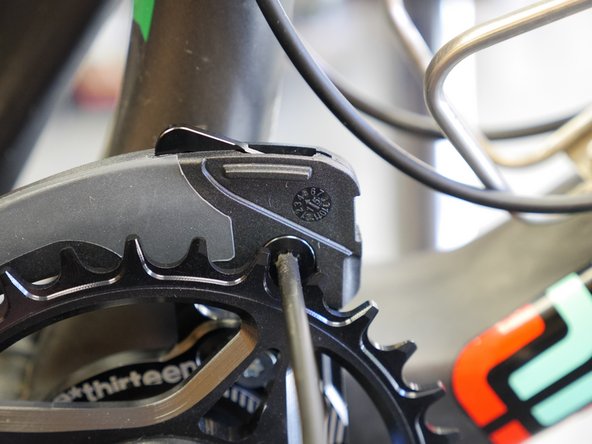

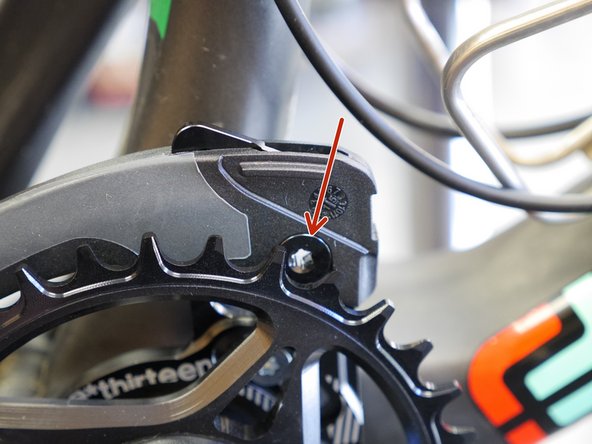

Adjust the upper slider height for your chainring size by loosening the T25 Torx bolt and sliding up or down on the backplate Center the upper slider fixing bolt in the valley of a chainring tooth and tighten to 0.9N*m
  • Adjust the upper slider height for your chainring size by loosening the T25 Torx bolt and sliding up or down on the backplate

  • Center the upper slider fixing bolt in the valley of a chainring tooth and tighten to 0.9N*m

Add Comment

Conclusion

Thanks for reading, now get out there and ride!
